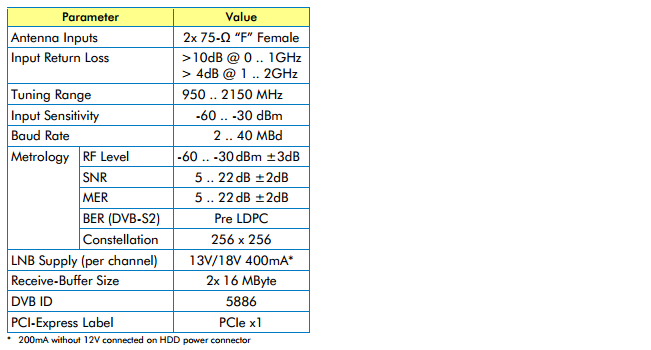

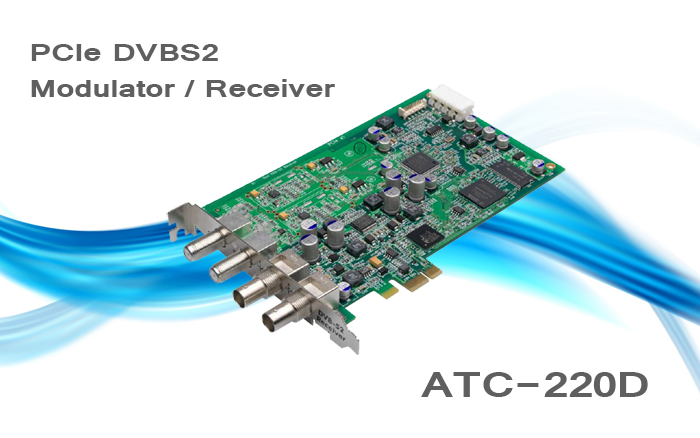

ATC-220D PCIe DVBS2 Modulator/Receiver





· DVB-S / DVB-S2 receiver that can be configured as single-channel receiver with support for QPSK, 8-PSK, 16-APSK and 32-APSK, or as dual-channel receiver with support for QPSK and 8-PSK



· DVB-S2 demodulation compliant to EN 302 307 and EN 301 210, as well as legacy DVB-S



·Full LNB support with DiSEqC interface and 13V/18V 200mA supply (PCIe power) or 400mA with external power



· Each channel provides lock status, RF level, modulation type, code rate, SNR/MER and RS error counts (DVB-S only)
